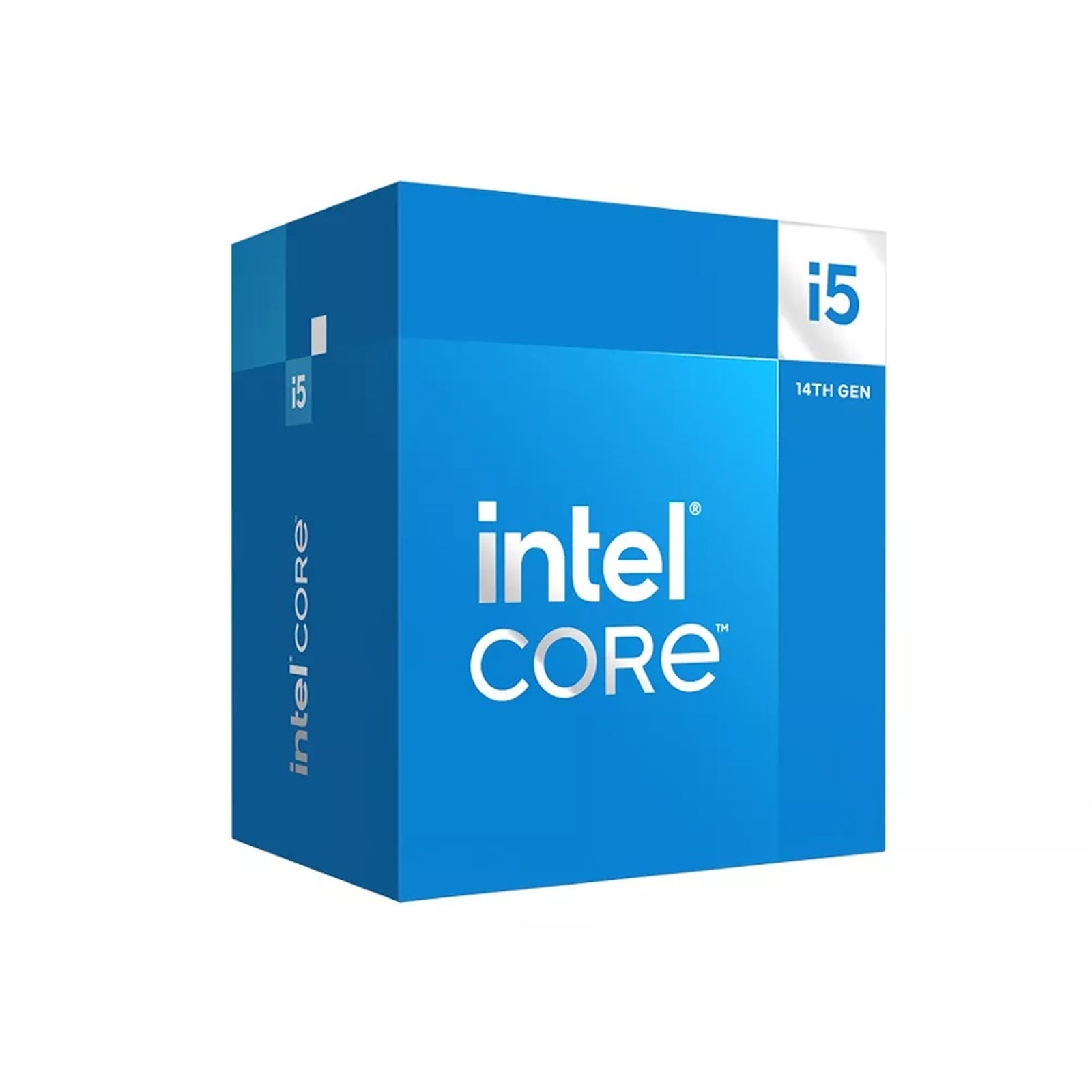

Intel Core i5 14500 Processor
Liquid error (snippets/product-short-description line 19): invalid integer
- £243.13
- £243.13
- (-0%)
- Unit price
- per
Free Shipping
On all orders over £99
Free Returns
Learn More.
Description
xRevolutionary Performance & Multitasking
-
6 P-Cores optimized for single-thread bursts in games and applications
-
8 E-Cores to handle background tasks and heavy multi-threaded workloads
-
Intel® Thread Director dynamically assigns threads to the optimal core for smooth gameplay
Realise Your Dream Build
-
Expanded Memory Options: DDR5-4800 or DDR4-3200, up to 192 GB
-
PCIe Gen 5 Ready: 16 lanes for next-gen GPUs and SSDs, plus 4 lanes of PCIe 4.0 (20 total)
-
Competitive Connectivity: Wi-Fi 7 support for ultra-low latency
Optimise Your Setup
-
Stream, record, and play simultaneously—hybrid architecture prioritizes gaming performance while running background software
-
Unlock overclocking potential with Intel Extreme Tuning Utility
Specifications
xFeatures
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
|---|---|
| PCI Express slots version | 4.0, 5.0 |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| PCI Express configurations | 1x16+1x4, 2x8+1x4 |
| Thermal solution specification | PCG 2020A |
| Maximum number of PCI Express lanes | 20 |
| Market segment | Desktop |
| Harmonized System (HS) code | 8542310001 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Use conditions | Workstation, PC/Client/Tablet |
| Direct Media Interface (DMI) Revision | 4.0 |
Graphics
| On-board graphics card model | Intel UHD Graphics 770 |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| On-board graphics card dynamic frequency (max) | 1550 MHz |
| On-board graphics card outputs supported | Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1 |
| On-board graphics card maximum resolution (DisplayPort) | 7680 x 4320 pixels |
| Number of execution units | 32 |
| On-board graphics card ID | 0x4680 |
| On-board graphics card maximum resolution (eDP) | 5120 x 3200 pixels |
| On-board graphics card refresh rate (eDP) | 120 Hz |
| On-board graphics card refresh rate (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate (HDMI) | 60 Hz |
| Number of displays supported | 4 |
| Multi-Format Codec Engines | 2 |
Logistics Data
| Harmonized System (HS) code | 8542310001 |
|---|
Memory
| ECC | Yes |
|---|---|
| Non-ECC | Yes |
| Memory bandwidth (max) | 76.8 GB/s |
| Memory channels | Dual-channel |
| Maximum internal memory supported by processor | 192 GB |
| Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM |
Operational Conditions
| Tjunction | 100 °C |
|---|
Other Features
| Maximum internal memory | 192 GB |
|---|---|
| L2 cache | 11776 KB |
| Graphics output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
Processor
| Processor model | i5-14500 |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Box | Yes |
| Processor socket | LGA 1700 |
| Processor cores | 14 |
| Processor threads | 20 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 5 GHz |
| Processor cache | 24 MB |
| Processor codename | Raptor Lake |
| Processor cache type | Smart Cache |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Processor ARK ID | 236784 |
| Cooler included | Yes |
| Efficient cores | 8 |
| Performance cores | 6 |
| Maximum number of DMI lanes | 8 |
| Processor base power | 65 W |
| Maximum turbo power | 154 W |
| Efficient-core base frequency | 1.9 GHz |
| Efficient-core boost frequency | 3.7 GHz |
| Performance-core base frequency | 2.6 GHz |
| Performance-core boost frequency | 5 GHz |
| Processor generation | Intel® Core™ i5 (14th gen) |
Processor Special Features
| Intel Hyper-Threading Technology (HT Technology) | Yes |
|---|---|
| Intel Turbo Boost Technology | 2.0 |
| Intel Quick Sync Video Technology | Yes |
| Intel Clear Video HD Technology (CVT HD) | Yes |
| Intel AES New Instructions (AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Secure Key | Yes |
| Intel 64 | Yes |
| Intel OS Guard | Yes |
| Intel VT-d | Yes |
| Intel VT-x | Yes |
| Intel Speed Shift Technology | Yes |
| Intel Boot Guard | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel Deep Learning Boost (DL Boost) | Yes |
| Intel Volume Management Device (VMD) | Yes |
| Intel Control-flow Enforcement Technology (CET) | Yes |
| Intel Thread Director | Yes |
| Intel Gaussian & Neural Accelerator (GNA) 3.0 | Yes |
| Intel Standard Manageability (ISM) | Yes |
